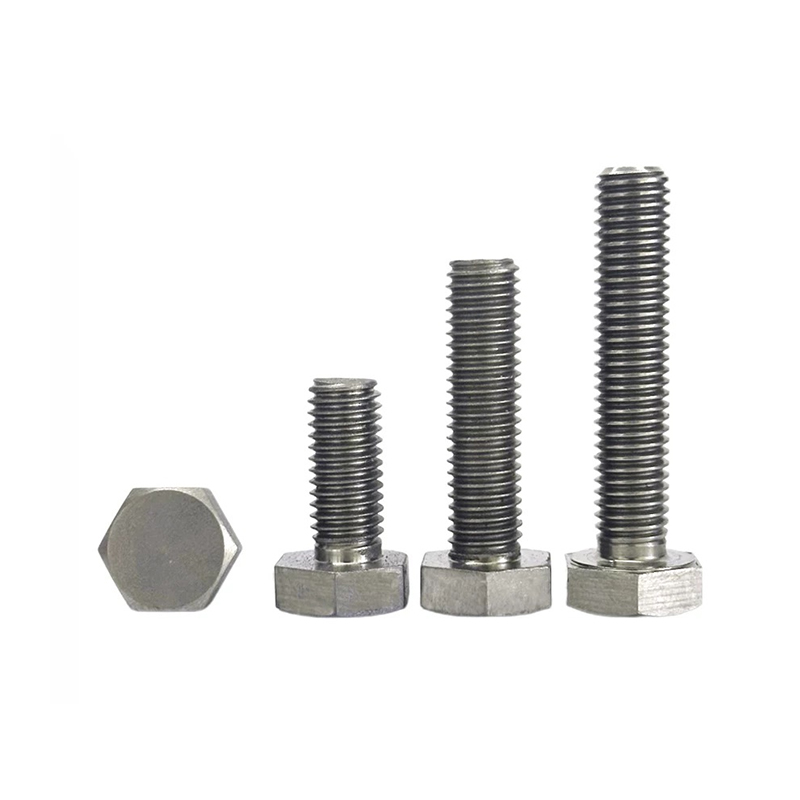

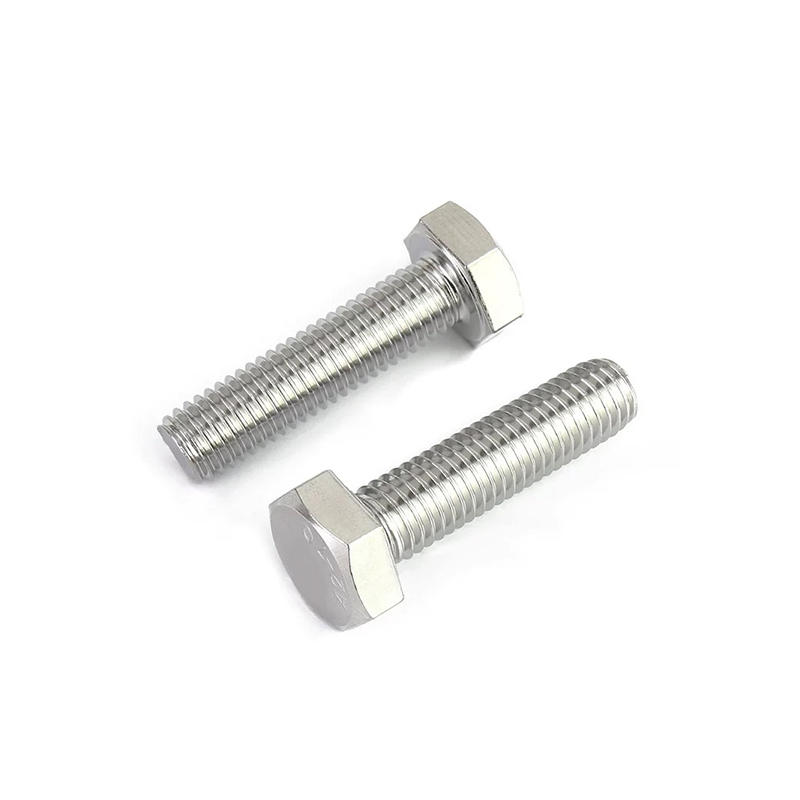

DIN933 Hex Bolt

DIN 933 is the standard for full‑thread hexagon head bolts, one of the most widely used general‑purpose fasteners in construction, machinery, automotive and industrial assembly. The bolt features a hexagonal head for easy torque installation with wrenches, and full‑length thread design to meet flexible fastening requirements.

Material: Carbon steel (C1022 / 4.8 / 8.8 / 10.9 / 12.9 grade), Stainless steel A2‑50, A4‑80
Surface finish: Electro‑galvanized (white/yellow zinc), black oxide, hot‑dip galvanized, Ruspert coating

Thread type: Metric coarse thread (M5–M48), pitch conforms to DIN standard
Head width across flats: Strictly per DIN 933 standard, consistent with DIN 934 nut matching
Thread: Full thread, full‑length threading for complete engagement
Length range: 8mm–300mm, customized sizes available

Full‑thread structure, flexible connection, suitable for various thickness assembly
High precision thread, perfect matching with DIN 934 hex nuts
Stable mechanical performance, anti‑loose, durable, strong load‑bearing capacity
Multiple anti‑corrosion treatments for indoor and outdoor applications

Application Scenarios
Widely used in mechanical equipment, steel structure engineering, building construction, electrical installation, automotive parts, pipeline fixing, furniture hardware and general industrial assembly.

Submit application



Description

sign

Product Name	DIN933 hex head bolt
Material	Carbon steel, Stainless steel
Surface Finish	Yellow zinc, Blackened, Blue and white zinc, Bleached
Colour	Yellow, Black, Blue White, White
Standard Number	DIN 933
Grade	4 8 10 A2-70
Diameter	M2 M3 M4 M5 M6 M8 M10 M12
Thread form
Place of origin	Hebei, China
Brand	Muyi
Pack	Box+cardboard carton+pallet
The product can be customized
In the field of construction, hexagonal bolts are widely used. They are used for steel structures, installation of large machinery, bridge construction, etc. Especially in steel structure buildings, hexagonal bolts are used as high-strength bolts to connect and fix steel structure components, ensuring the stability and safety of the structure 2. Insulation and non-magnetic properties of butterfly screws: Butterfly screws have the characteristics of insulation and non-magnetic properties, which make them particularly useful in situations where electromagnetic interference needs to be avoided, such as in medical equipment, electronic devices, and communication devices In addition to the above-mentioned industries, hexagonal bolts also play an important role in the assembly of daily necessities such as furniture, sports equipment, doors and windows. Their convenience and reliability make them an ideal choice for various assembly tasks.

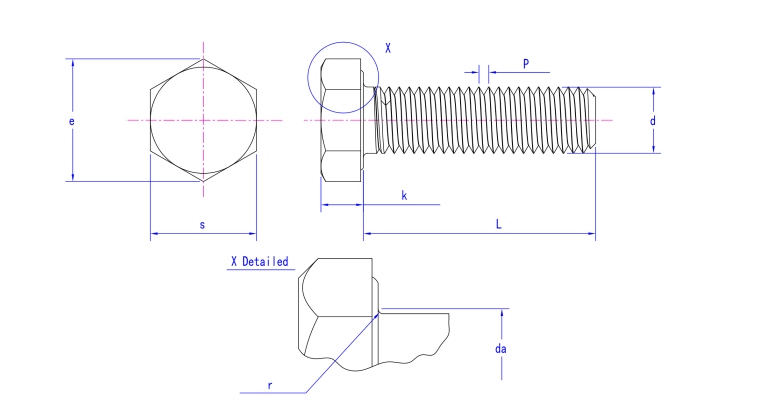

Mon	M2	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18
P	0.4	0.5	0.7	0.8	1	1	1.25	1.5	1.75	2	2	2.5
da max	2.6	3.6	4.7	5.7	6.8	7.8	9.2	11.2	13.7	15.7	17.7	20.2
e min	4.32	6.01	7.66	8.79	11.05	12.12	14.38	18.9	21.1	24.49	26.75	30.14
k min	1.28	1.88	2.68	3.35	3.85	4.65	5.15	6.22	7.32	8.62	9.82	11.28
k max	1.52	2.12	2.92	3.65	4.15	4.95	5.45	6.56	7.68	8.98	10.18	11.72
r min	0.1	0.1	0.2	0.2	0.25	0.25	0.4	0.4	0.6	0.6	0.6	0.6
s max	4	5.5	7	8	10	11	13	17	19	22	24	27
s min	3.82	5.32	6.78	7.78	9.78	10.73	12.73	16.73	18.67	21.67	23.67	26.67

Packing and delivery
