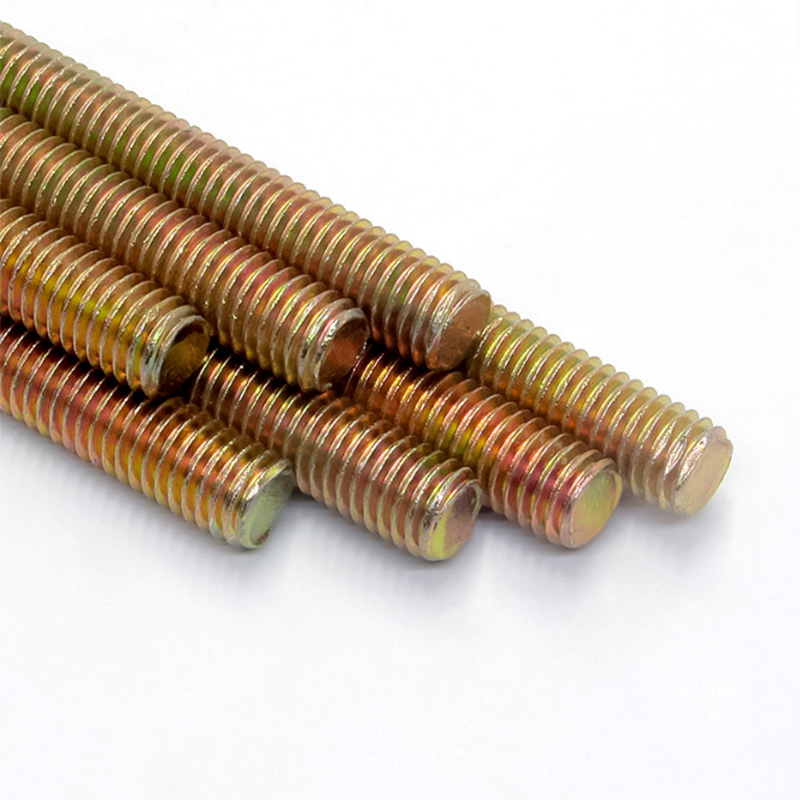

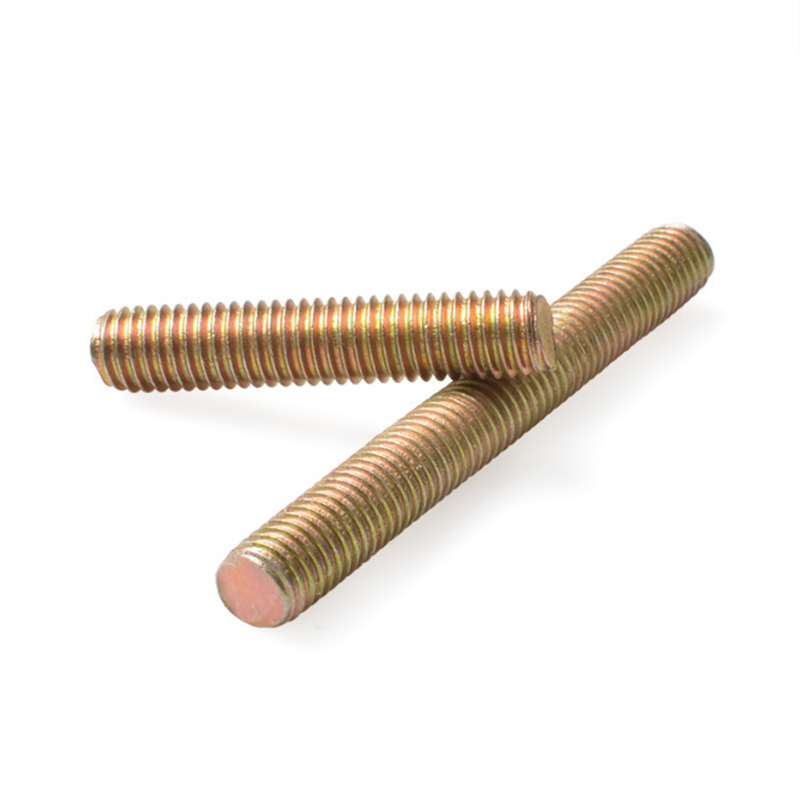

1. A threaded rod is defined as a machined part with external threads on the rod body. It is usually used to join two or more parts together and provide some tensile strength. In general, threaded rods are usually galvanized to improve their corrosion resistance.
2. The DIN975 standard specifies the requirements for the size, material and physical properties of the threaded rod to ensure its quality and interchangeability. This standard has a wide range of applications in construction, machinery, automotive, aerospace and electronics
| Product Name | DIN975 Threaded rod |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Bleached |
| Colour | Yellow, Black, Blue White, White |
| Standard Number | DIN/ASME/ISO/GB |
| Grade | 4.8/6.8/8.8/10.9/12.9 ; A2-70 |
| Diameter | M1.4 M1.6 M2 M2.5 M3 M4......M80 M90 M100 |
| Thread form | Coarse thread, Medium thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. A threaded rod is defined as a machined part with external threads on the rod body. It is usually used to join two or more parts together and provide some tensile strength. In general, threaded rods are usually galvanized to improve their corrosion resistance.
2. The DIN975 standard specifies the requirements for the size, material and physical properties of the threaded rod to ensure its quality and interchangeability. This standard has a wide range of applications in construction, machinery, automotive, aerospace and electronics |
|

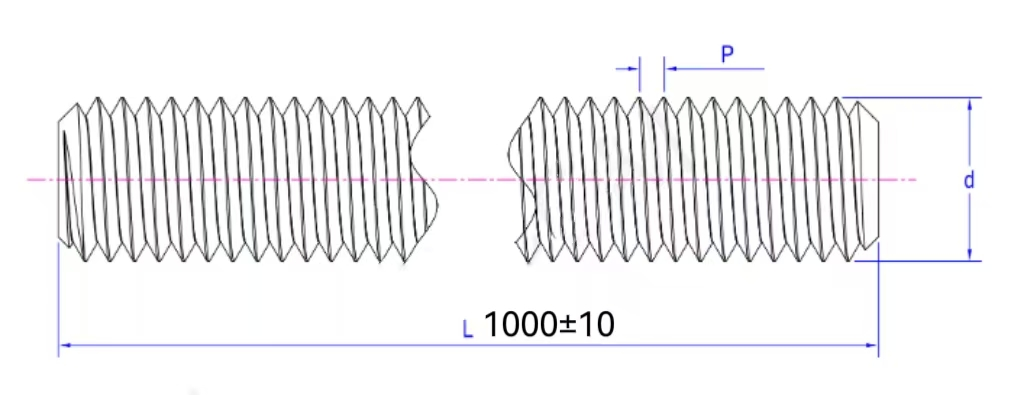

| Nominal diameter (d) |
Pitch (P) mm |
Every 1000 pieces weighs ≈kg |
| M2 | 0.4 | 18.7 |
| M2. 5 | 0.45 | 30 |
| M3 | 0.5 | 44 |
| M3. 5 | 0.6 | 60 |
| M4 | 0.7 | 78 |
| M5 | 0.8 | 124 |
| M6 | 1 | 177 |
| M8 | 1/1.25 | 319 |
| M10 | 1/1.25/1.5 | 500 |
| M12 | 1.25/1.5/1.75 | 725 |
| M14 | 1.5/2 | 970 |
| M16 | 1.5/2 | 1330 |
| M18 | 1.5/2.5 | 1650 |
| M20 | 1.5/2.5 | 2080 |
| M22 | 1.5/2.5 | 2540 |
| M24 | 2/3 | 3000 |
| M27 | 2/3 | 3850 |
| M30 | 2/3.5 | 4750 |
| M33 | 2/3.5 | 5900 |
| M36 | 3/4 | 6900 |
| M39 | 3/4 | 8200 |
| M42 | 3/4.5 | 9400 |
| M45 | 3/4.5 | 11000 |
| M48 | 3/5 | 12400 |
| M52 | 3/5 | 14700 |
Wedge anchors are mainly used for heavy-duty equipment such as pipe gallery hangers, seismic support hangers, glass exterior walls, elevator brackets, shelves, and railings. In addition, it is also suitable for concrete and dense natural stone, metal structures, metal profiles, bottom plates, support plates, brackets, machine beams, beams, brackets, etc.
GB62.2 Butterfly Nut (Square Wing Butterfly Nut) is mainly used in occasions that require frequent disassembly and installation, especially suitable for furniture, mechanical equipment, and automotive fields. Its design features include flat square wings on both sides, allowing the nut to be easily rotated by fingers without the need for tools, thereby improving the convenience and efficiency of operation.
It is used to support structural steel columns, lamp posts, heavy equipment, highway signs, and many other applications. Its hook provides resistance, preventing it from pulling out of the concrete foundation when force is applied. Stainless steel bent anchor bolts are used to secure embedded plates, signage structures, columns, and many other structural objects to concrete.
1. Fixed function: Chemical anchor bolts are mainly used for installing and fixing various components, such as post embedded parts in curtain wall and marble dry hanging construction, equipment installation, bridge guardrails, highway and building reinforcement and renovation, etc. It uses a special chemical adhesive to bond and fix the screw in the drilled hole of the concrete substrate, achieving anchoring of the fixed parts 2. Reinforcement function: In building reinforcement engineering, chemical anchor bolts are commonly used to improve the bearing capacity and stability of components. It can be used in conjunction with a concrete base to firmly fix the screw in the borehole through chemical adhesives, thereby enhancing the overall performance of the structure 3. Easy installation: The installation process of chemical anchor bolts is relatively fast, with rapid solidification and saving construction time. It does not require pre embedding and can be installed at any time during the construction process, suitable for various complex construction environments
Cross recessed pan head wood screws are widely used in the following fields because of their unique structure: ● Furniture manufacturing: used to connect various parts of furniture to ensure its stability and strength. ● Automobile manufacturing: used for the tight connection inside the automobile to improve the safety and reliability of the automobile. ● Woodworking: used for the assembly and fixing of wood products to improve the durability of wood products. ● Mechanical manufacturing: used for the assembly and fixing of various mechanical equipment to ensure the normal operation of the equipment.
1.Hexagonal bolts are widely used both indoors and outdoors. Outdoor applications are mostly for building installations, bridges and roads, and power facilities; indoor applications are mostly for mechanical equipment, medical equipment, and electronic equipment. 2.When hexagonal bolts are used in electronic equipment, medical equipment, and other places, stainless steel hexagonal bolts are generally selected because the surface color of stainless steel is more beautiful and the corrosion resistance is better, which can keep the machine beautiful for a long time. If it is a mechanical equipment with large vibration, it is recommended to choose high-strength hexagonal bolts.
As a common fastener, square head bolt is a special type of bolt with a square head and unique shape and characteristics. It is widely used in mechanical manufacturing, construction industry, automobile manufacturing and other fields. 1. Mechanical manufacturing: Square head bolts are widely used in the field of mechanical manufacturing, such as mechanical equipment, machine tools, transmission devices, etc. 2. Construction industry: In the construction field, square head bolts are commonly used to fix various components such as beams, slabs, columns, etc. 3. Automotive manufacturing: In the process of automotive manufacturing, square head bolts are used to secure automotive components such as engines, transmissions, etc.
1.Eye wood screws, also known as sheep eye, sheep eye ring, sheep eye nail, sheep eye bolt, etc., have flat head, pointed head, open head and closed head. The welding methods of eye wood screws are spot welding and full welding. 2. Wide application: Eye wood screws are widely used as accessories for hanging accessories and are also one of the commonly used hardware accessories for architectural decoration.They are used to fix and connect various decorative materials.Eye wood screws are also widely used in ports, electric power, steel, shipbuilding, petrochemicals, mining, railways, construction, metallurgy and chemical industry, automobile manufacturing, plastic machinery, industrial control, highways, large-scale transportation, pipeline auxiliary installation, slope tunnels, shaft management and protection, maritime rescue, marine engineering, airport construction, bridges, aviation, aerospace, venues and other important industries as well as mechanical equipment of infrastructure projects.
1. Determine bearing capacity: The diameter of the nut is directly related to its bearing capacity. Generally speaking, the larger the diameter, the stronger the load-bearing capacity of the nut. This means that when subjected to high loads, it is necessary to choose nuts with larger diameters 2. Impact on installation space: The diameter of the nut can also affect its installation space requirements. When designing mechanical structures, it is necessary to consider the diameter of the nut to ensure sufficient space for installation and operation. 3. Standardized production: The DIN934 standard specifies the diameter of nuts, which helps to achieve standardized production of nuts. Standardized production not only improves production efficiency, but also ensures the quality and interchangeability of nuts. The diameter parameter in DIN934 standard plays a key role in the application of nuts, which not only affects the function and performance of nuts, but also relates to the stability and safety of the entire mechanical structure.
Solar panel aluminum middle clamps are designed for 30-50 mm solar modules with frames. The design is accurate. The middle clamp provides a solid connection between the panels and secures the panels to the guide rail.
Durable Structure: Our sleeve anchor with eyebolt or hook bolt is made of high-quality carbon steel, ensuring strong and durable performance. Customizable: Our sleeve anchors come in different grades, including 4.8, 6.8, and 8.8 International compatibility: It has metric and imperial measurement systems, making it suitable for global markets and applications. User friendly design: Our sleeve anchor is designed with eyebolts, providing users with a convenient and easy-to-use solution. This user-friendly design ensures a worry free installation process, saving time and effort.
1. Mechanical manufacturing: Hexagonal locking thin nuts are mainly used to connect and fix various mechanical components, such as screws, flanges, bearings, and camshafts, to ensure the normal operation of machines. 2. Automotive manufacturing: In the automotive manufacturing process, hexagonal locking thin nuts are used to connect and secure various automotive components such as engines, axles, and suspensions to ensure the safety and stability of the vehicle. 3. Construction field: Hexagonal locking thin nuts are widely used in the assembly of steel structures, such as bridges, factories, etc. They are lightweight and have good anti loosening properties, which can ensure the stability and safety of steel structures during use. 4. Electronic devices: In the field of electronic product manufacturing, such as mobile phones, computers, etc., hexagonal locking thin nuts are used to fix and connect various components, such as batteries, motherboards, displays, etc., to save space and reduce weight. 5. Home decoration: In the field of home decoration, hexagonal locking thin nuts are commonly used in the assembly of furniture, toys and other products, which can not only play a fixing role but also maintain a clean appearance. 6. General field: Hexagonal locking thin nuts are also widely used in the production and manufacturing processes of various mechanical equipment, instruments, household appliances, etc.
1.The head of the bolt is spherical with holes, the spherical surface is smooth, the installation of the Eye Bolts is relatively simple, and it is often used for the occasion of opening and disassembling or the tooling assembly.The thread precision of the Eye Bolts is high, which can improve the quality of the whole workpiece as an accessory. 2.Eye Bolts are widely used in: low temperature and high pressure valves, pressure pipelines, fluid engineering, oil drilling and production equipment, oilfield equipment and other fields, often in the disconnecting occasions or tools such as the valve industry, folding bicycles, strollers are used, because the use of Eye Bolts is convenient and fast, and the use of matching nuts plays the role of connection fastening, a wide range of applications.
Specification:①Thickened multifunctional angle code ②Ordinary multifunctional angle code Instalation scope:used for all kinds of tables,chairs,beds,laminated cabinet,etc.
The application scenarios of sheep eye hook sleeves mainly include home decoration, kitchen construction, door and window binding, and toy and gift binding. Sheep eye hook sleeve is commonly used in home decoration and kitchen construction, which can meet various hook needs and provide a firm fixing point. In addition, it can also be used for door and window binding or toy gift binding, providing reliable fixing effect.
DIN557 single chamfered square nuts are mainly used in applications that require high-strength connections and corrosion resistance, such as power engineering, road transportation, home building materials, and other industries. The design features of this nut include a single-sided chamfer, which is easy to install and can improve the stability and reliability of the connection.
