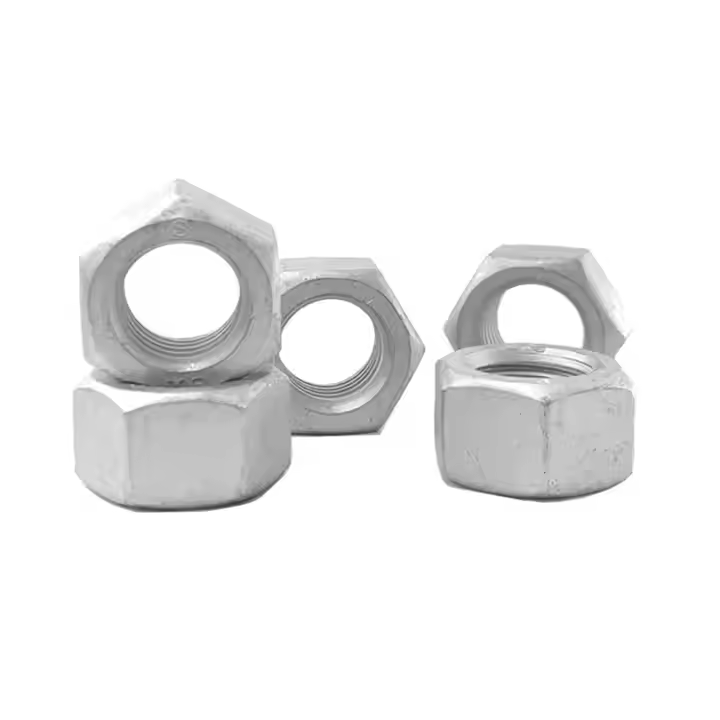

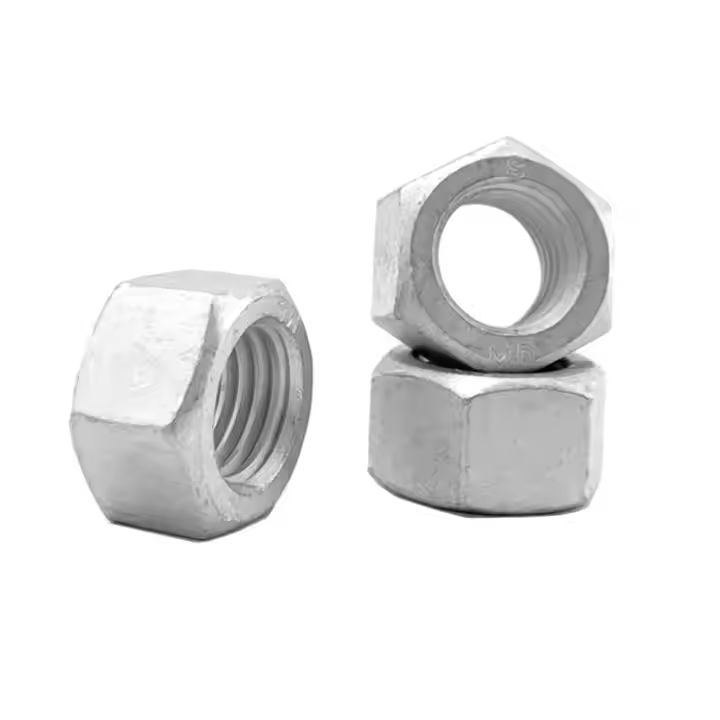

DIN934 Hex Nut

Hex nut is a type of fastener that It is widely used in fields such as mechanical manufacturing, automotive manufacturing, and electronic equipment. In high-speed mechanical equipment, nuts can effectively prevent thread loosening and ensure the safe and stable operation of the equipment.

We offer galvanized coatings (4.8/8.8/10.9), blue-white zinc coating, color zinc coating, and blackening coating.

Submit application



Description

sign

Product Name	DIN982 Hex Lock Nut with white
Material	Carbon steel
Surface Finish	Dacromet ,White zinc
Colour	White
Standard Number	DIN982
Grade	4 8
Diameter	M5 M6 M8 M10 M12 M14 M16 M24
Thread form	Coarse thread
Place of origin	Hebei, China
Brand	Muyi
Pack	Box+cardboard carton+pallet
The product can be customized
Hexagonal embedded locking nut is a type of fastener that can lock threads. It is widely used in fields such as mechanical manufacturing, automotive manufacturing, and electronic equipment. In high-speed mechanical equipment, locking nuts can effectively prevent thread loosening and ensure the safe and stable operation of the equipment.

Thread Spec D		M3	M4	M5	M6	M8	M10	M12	(M14)	M16	M20	M24	M30	M36
P	flight lead	0.5	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5	3	3.5	4
da	min	3.45	4.6	5.75	6.75	8.75	10.8	13	15.1	17.3	21.6	25.9	32.4	38.9
da	max	3	4	5	6	8	10	12	14	16	20	24	30	36
dw	min	4.57	5.88	6.88	8.88	11.63	14.63	16.63	19.64	22.49	27.7	33.25	42.75	51.11
e	min	6.01	7.66	8.79	11.05	14.38	17.77	20.03	23.36	26.75	32.95	39.55	50.85	60.79
h	max	4.5	6	6.8	8	9.5	11.9	14.9	17	19.1	22.8	27.1	32.6	38.9
h	min	4.02	5.52	6.22	7.42	8.92	11.2	14.2	15.9	17.8	20.7	25	30.1	36.4
m	min	2.15	2.9	4.4	4.9	6.44	8.04	10.37	12.1	14.1	16.9	20.2	24.3	29.4
mw	min	1.72	2.32	3.52	3.92	5.15	6.43	8.3	9.68	11.28	13.52	16.16	19.44	23.52
s	max	5.5	7	8	10	13	16	18	21	24	30	36	46	55
s	min	5.32	6.78	7.78	9.78	12.73	15.73	17.73	20.67	23.67	29.16	35	45	53.8

Packing and delivery
