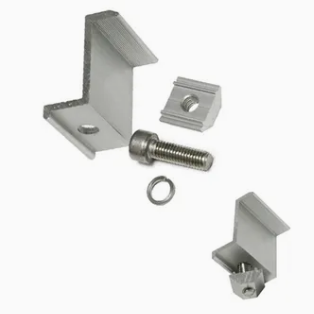

Solar End Clamp

Solar panel aluminum middle clamps are designed for 30-50 mm solar modules with frames. The design is accurate. The middle clamp provides a solid connection between the panels and secures the panels to the guide rail.

Submit application



Description

sign

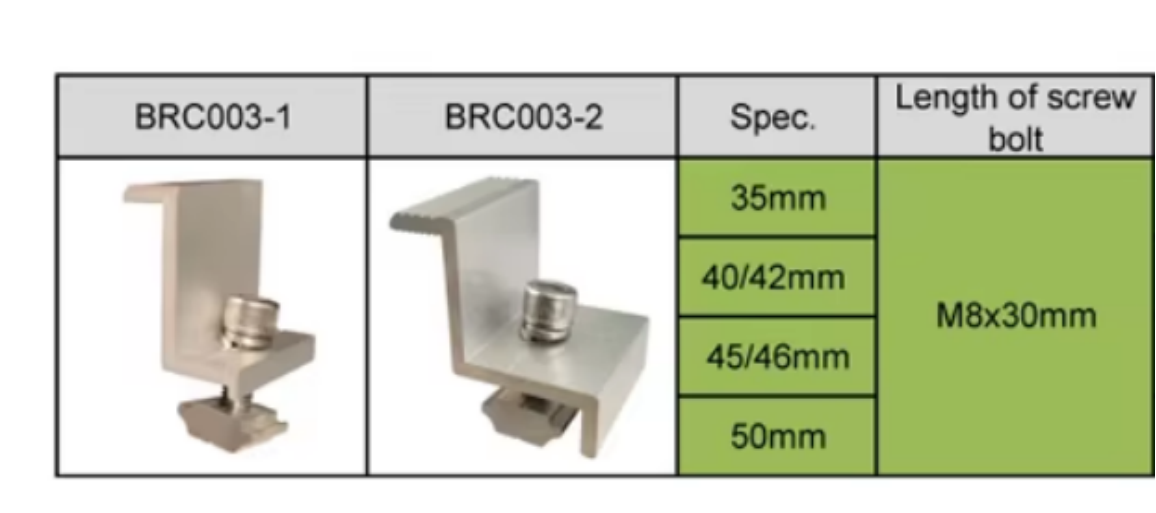

Product name	Solar End Clamp
Material	Carbon steel, stainless steel
Surface Finish	Yellow zinc, Blackened, Blue and white zinc,
Colour	Yellow, Black, Blue white
Grade	4 8 10 A2-70
Place of origin	Hebei, China
Perforated Or Not	Is Perforated
Brand	Muyi
Pack	Box+cardboard carton+pallet
The product can be customized
Solar panel aluminum middle clamps are designed for 30-50 mm solar modules with frames. The design is accurate. The middle clamp provides a solid connection between the panels and secures the panels to the guide rail.

Packing and delivery
