1. Lifting and handling: The main function of the eyebolt is to serve as a connecting component for lifting and handling equipment or objects. They are usually used in conjunction with hooks, hoists, or other lifting equipment to safely lift and move heavy objects
2. Fixation and support: Eye bolts can also be used to fix and support structural components. By screwing it into a suitable substrate (such as concrete or metal), a stable support point can be provided for hanging or fixing other components
3. Wide application areas: Eye bolts are widely used in multiple industries due to their durability and versatility, including ports, power, steel, shipbuilding, petrochemicals, mining, railways, construction, metallurgy and chemical engineering, automobile manufacturing, plastic machinery, industrial control, highways, large-scale transportation, pipeline auxiliary equipment, slope tunnels, shaft treatment and protection, maritime rescue, marine engineering, airport construction, bridges, aviation, aerospace, venues and other important industries as well as mechanical equipment for infrastructure construction projects

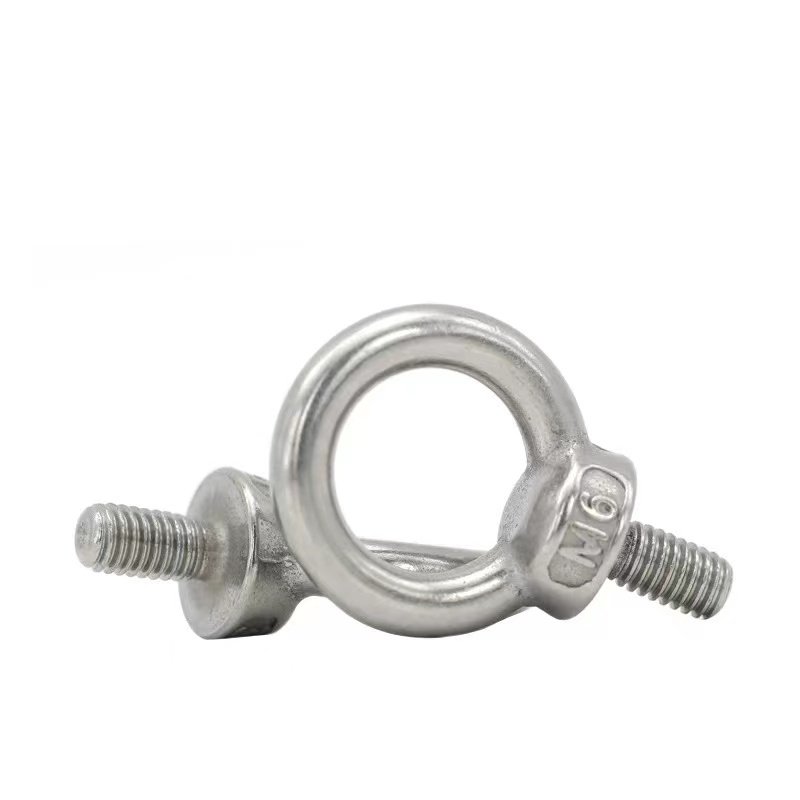

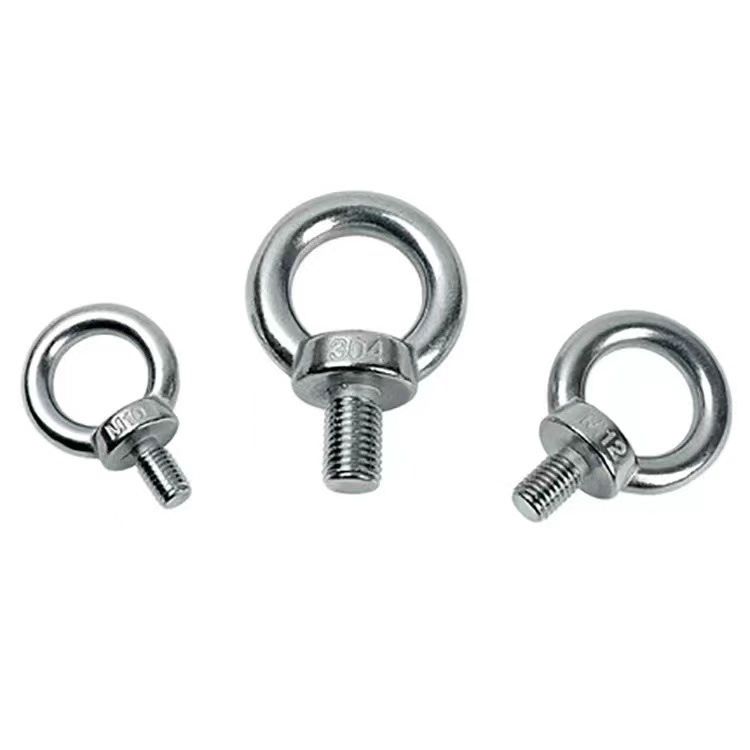

| Product Name | eye bolt |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Blue and white zinc, Bleached |
| Colour | Blue White, White |
| Standard Number | |
| Grade | 4 8 10 A2-70 |
| Diameter | M4 M5 M6 M8 M10 M12 M16 |
| Thread form | |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. Lifting and handling: The main function of the eyebolt is to serve as a connecting component for lifting and handling equipment or objects. They are usually used in conjunction with hooks, hoists, or other lifting equipment to safely lift and move heavy objects 2. Fixation and support: Eye bolts can also be used to fix and support structural components. By screwing it into a suitable substrate (such as concrete or metal), a stable support point can be provided for hanging or fixing other components 3. Wide application areas: Eye bolts are widely used in multiple industries due to their durability and versatility, including ports, power, steel, shipbuilding, petrochemicals, mining, railways, construction, metallurgy and chemical engineering, automobile manufacturing, plastic machinery, industrial control, highways, large-scale transportation, pipeline auxiliary equipment, slope tunnels, shaft treatment and protection, maritime rescue, marine engineering, airport construction, bridges, aviation, aerospace, venues and other important industries as well as mechanical equipment for infrastructure construction projects |
|

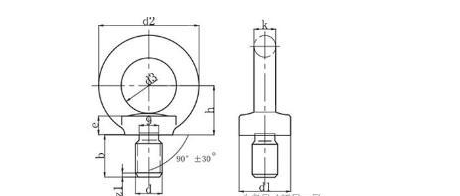

| Size | d1 | d2 | d3 | b | e | h | k |
| M6 | 17 | 28 | 16 | 13 | 6 | 17 | 6 |
| M8 | 20 | 36 | 20 | 15 | 6 | 18 | 8 |
| M10 | 25 | 45 | 25 | 18 | 8 | 22 | 10 |
| M12 | 30 | 54 | 30 | 22 | 10 | 26 | 12 |
| M14 | 35 | 63 | 35 | 28 | 12 | 30 | 14 |
| M16 | 35 | 63 | 35 | 28 | 12 | 30 | 14 |
| M20 | 40 | 72 | 40 | 30 | 12 | 35 | 16 |
| M22 | 45 | 81 | 45 | 35 | 14 | 40 | 18 |
| M24 | 50 | 90 | 50 | 38 | 16 | 45 | 20 |
| M27 | 50 | 90 | 50 | 38 | 18 | 45 | 20 |
| M30 | 65 | 108 | 60 | 45 | 18 | 55 | 24 |
| M33 | 65 | 108 | 60 | 45 | 22 | 55 | 24 |
| M36 | 75 | 126 | 70 | 55 | 22 | 65 | 28 |
| M39 | 75 | 126 | 70 | 55 | 26 | 65 | 28 |
| M42 | 85 | 144 | 80 | 65 | 30 | 75 | 32 |
| M45 | 85 | 144 | 80 | 65 | 30 | 75 | 32 |
| M48 | 100 | 166 | 90 | 70 | 35 | 85 | 38 |
| M52 | 100 | 166 | 90 | 70 | 35 | 85 | 38 |
| M56 | 110 | 184 | 100 | 80 | 38 | 95 | 42 |
| M64 | 120 | 206 | 110 | 90 | 42 | 100 | 48 |
