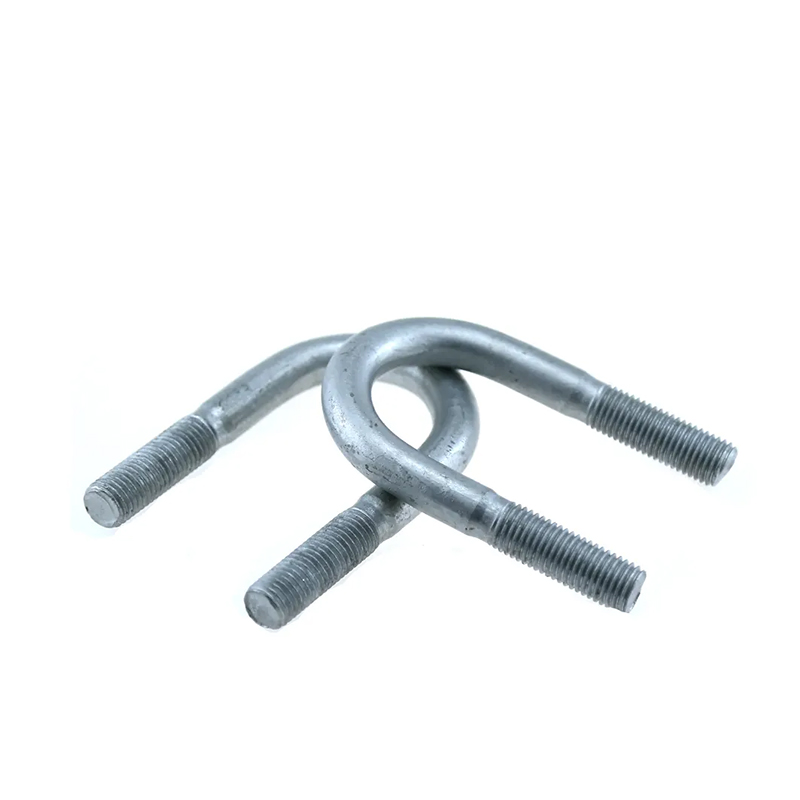

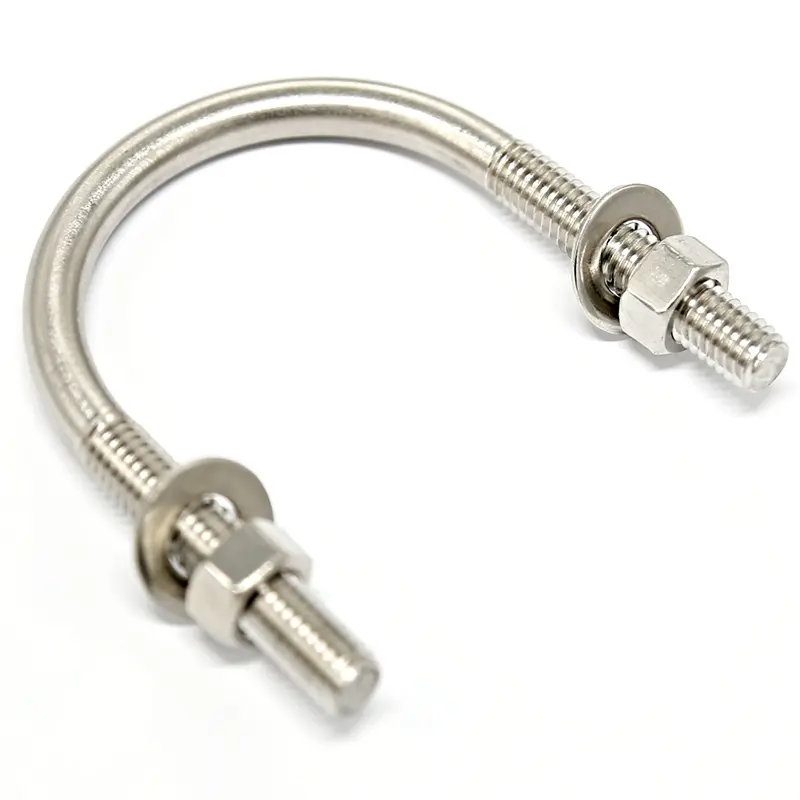

1It is mainly used to fix pipes such as water pipes or sheet springs such as automobiles, and its material characteristics, density, bending strength, impact toughness, compression strength, elastic modulus, tensile strength, temperature resistance and color are determined according to the use environment
2. U-type is generally used in trucks, it is used to stabilize the chassis and frame of the car. For example, leaf springs are connected with U-bolts.
U-bolt is widely used, the main uses: construction installation, mechanical parts connection, vehicles, ships, Bridges, tunnels and railways.
| Product Name | U-bolt |
| Material | Carbon steel Q235, Q345 alloy steel, stainless steel 201 304 316 |
| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Bleached |
| Colour | Yellow, Black, Blue White, White |
| Standard Number | JB/ZQ4321-2006。 |
| Grade | 4.8/6.8/8.8/10.9/12.9 ; A2-70 |
| Diameter | M1.4 M1.6 M2 M2.5 M3 M4......M80 M90 M100 |
| Thread form | Coarse thread, Medium thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1It is mainly used to fix pipes such as water pipes or sheet springs such as automobiles, and its material characteristics, density, bending strength, impact toughness, compression strength, elastic modulus, tensile strength, temperature resistance and color are determined according to the use environment
2. U-type is generally used in trucks, it is used to stabilize the chassis and frame of the car. For example, leaf springs are connected with U-bolts. |
|

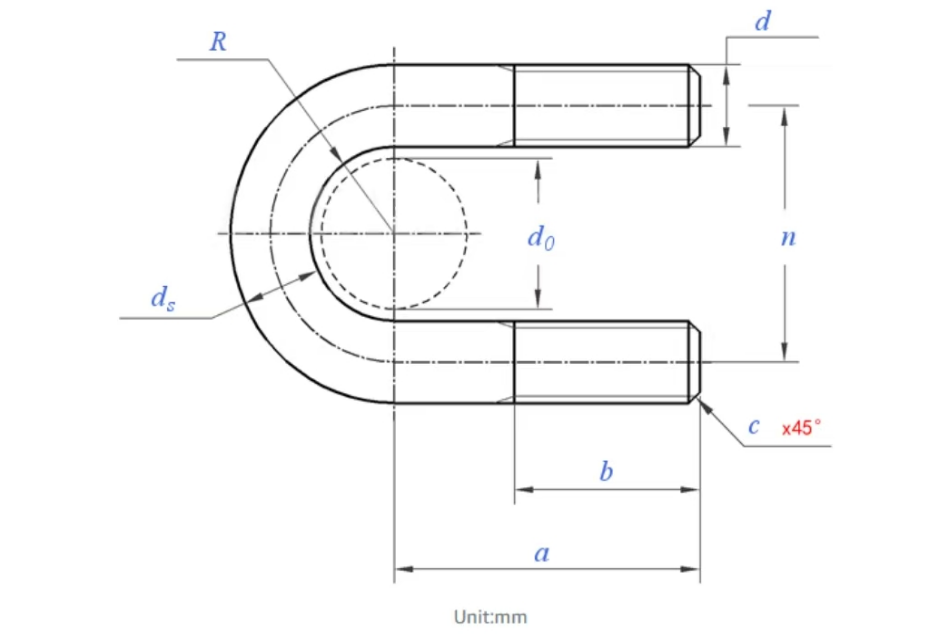

| SIZE | 14 | 18 | 22 | 25 | 33 | 38 | 42 | 45 | 48 | 51 | 57 | 60 | |
| d | M6 | M6 | M10 | M10 | M10 | M12 | M12 | M12 | M12 | M12 | M12 | M12 | |
| a | 33 | 33 | 42 | 44 | 48 | 55 | 57 | 59 | 60 | 62 | 66 | 67 | |
| R | 8 | 10 | 12 | 14 | 18 | 20 | 22 | 24 | 25 | 27 | 31 | 32 | |
| b | 22 | 22 | 28 | 28 | 28 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | |
| n | 22 | 26 | 34 | 38 | 46 | 52 | 56 | 60 | 62 | 66 | 74 | 76 | |
| L0 | Blank Length | 98 | 108 | 135 | 143 | 160 | 192 | 202 | 210 | 220 | 225 | 240 | 250 |
| c | 1 | 1 | 1.5 | 1.5 | 1.5 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| per 1000 units=kg | 22 | 24 | 83 | 88 | 99 | 171 | 180 | 188 | 196 | 200 | 214 | 223 | |
| SIZE | 76 | 83 | 89 | 102 | 108 | 114 | 133 | 140 | 159 | 165 | 219 | |
| d | M12 | M12 | M12 | M16 | M16 | M16 | M16 | M16 | M16 | M16 | M16 | |
| a | 75 | 78 | 81 | 93 | 96 | 99 | 108 | 112 | 122 | 125 | 152 | |
| R | 40 | 43 | 46 | 53 | 56 | 59 | 69 | 72 | 82 | 85 | 112 | |
| b | 32 | 32 | 32 | 38 | 38 | 38 | 38 | 38 | 38 | 38 | 38 | |
| n | 92 | 98 | 104 | 122 | 128 | 134 | 154 | 160 | 180 | 186 | 240 | |
| L0 | Blank Length | 289 | 310 | 325 | 365 | 390 | 405 | 450 | 470 | 520 | 538 | 680 |
| c | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| per 1000 units=kg | 256 | 276 | 290 | 575 | 616 | 640 | 712 | 752 | 822 | 850 | 1075 | |
