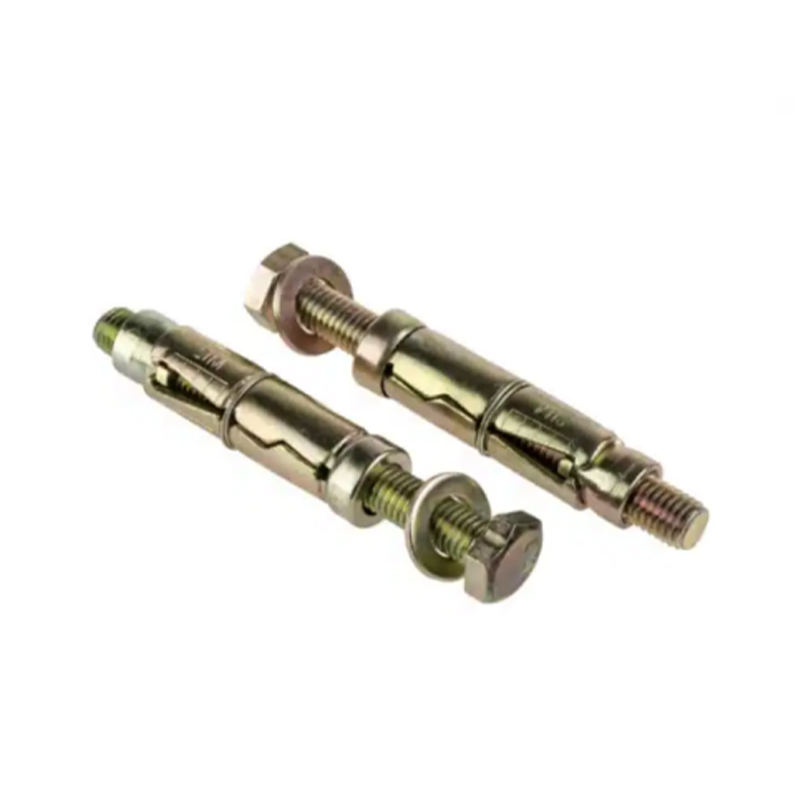

3pcs Fix Bolts Complete

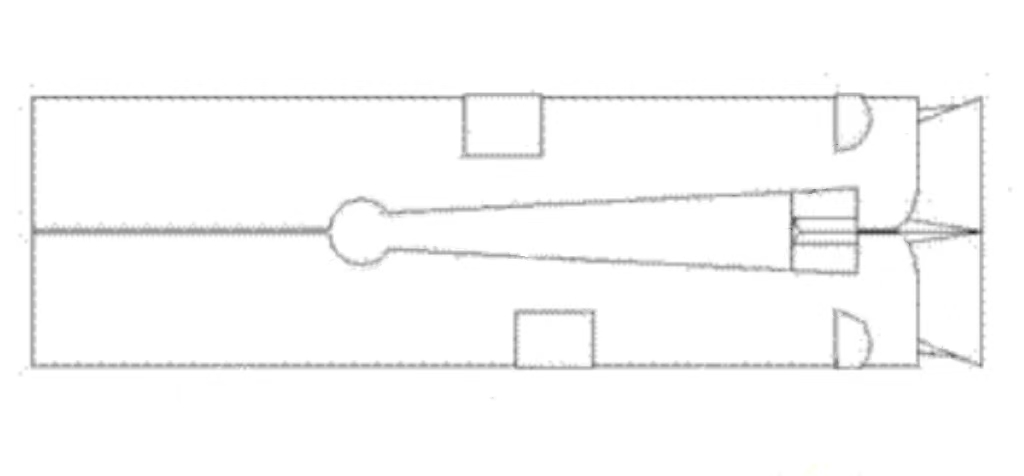

Structural Principle

Material: Galvanized carbon steel (rust-proof, high strength), some high-end models are stainless steel.

Composition: Hex bolt + flat washer + nut + three-piece expansion sleeve (with pre-slit and tightening cone).

Principle: When tightening the nut, the bolt pulls the cone, evenly spreading the three sleeve pieces, like three hands firmly “biting” the hole wall. The force is several times stronger than that of plastic expansion tubes, and it can even lock hollow bricks.

Mainstream Specifications & Compatible Parameters

| M6 | 10mm | 40/50mm | Lightweight Hangers, Shelves |

| M8 | 12mm | 60/70mm | Towel Racks, Small Appliance Brackets |

| M10 | 16mm | 70/80mm | Air Conditioner Outdoor Unit Brackets, Heavy-Duty Shelves |

| M12 | 18mm | 90/100mm | Curtain Walls, Heavy Equipment Fixing |

Core Advantages
Extremely High Load-Bearing Capacity: Taking M10 as an example, the ultimate pull-out force of solid concrete can reach 25kN. Calculated with a safe load-bearing capacity factor of 3-4, it can withstand tens of kilograms of tensile force; reliable anchoring can also be achieved with hollow bricks/perforated bricks (plastic expansion tubes are basically ineffective on hollow bricks).

Widely applicable wall surfaces: Suitable for concrete, red bricks, hollow bricks, lightweight bricks, foam bricks, and marble/stone, earning it the nickname “hollow brick nemesis.”

Easy to install and remove: Simply loosen the nut to remove it; the sleeve is recyclable and reusable (unlike plastic expansion tubes, which are generally disposable).

Submit application



Description

sign

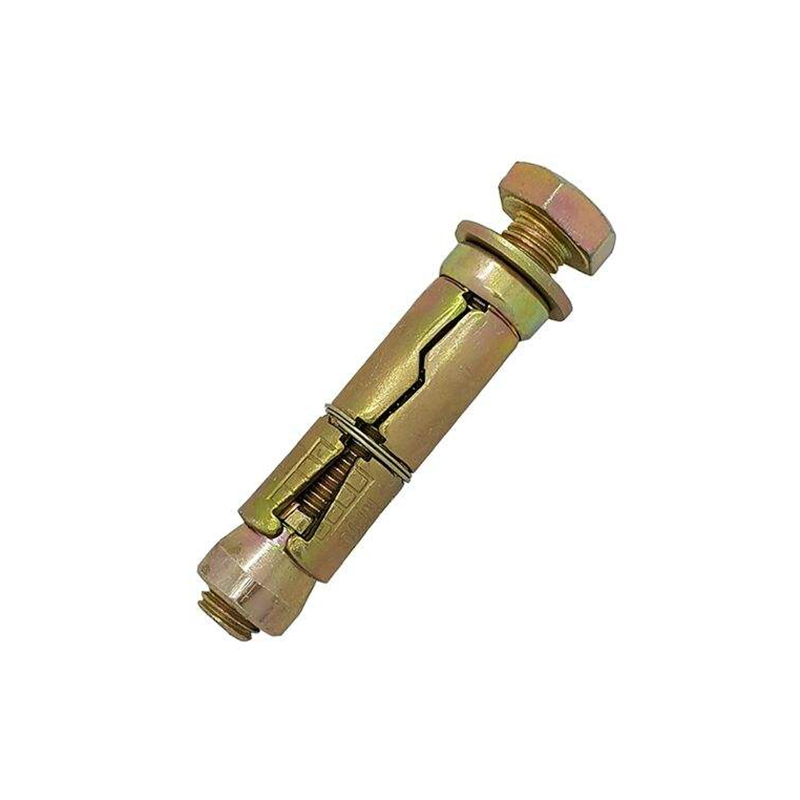

Product Name	3pcs Expansion Fix Bolts
Material	Carbon steel, Stainless steel
Surface Finish	Yellow zinc, Blackened, Blue and white zinc, Bleached
Colour	Yellow, Black, Blue White, White
Standard Number	DIN/ASME/ISO/GB
Grade	4.8/6.8/8.8/10.9/12.9 ; A2-70
Diameter	M1.4 M1.6 M2 M2.5 M3 M4......M80 M90 M100
Thread form	Coarse thread, Medium thread, Fine thread
Place of origin	Hebei, China
Brand	Muyi
Pack	Box+cardboard carton+pallet
The product can be customized
1. The products are generally carbon steel or stainless steel, and the surface of carbon steel is cold and hot galvanized and dacromet surface treatment. It is suitable for light steel keel ceiling, ventilation pipe, cable bridge, tunnel and other anchoring parts that need to be suspended. Anchors are divided into medium and light duty series and can also be specially designed and processed according to customer requirements. 2. Widely used ‌ : mainly used in heavy anchoring occasions, such as mechanical equipment anchor, elevator support anchor, curtain wall ceiling and other heavy anchoring occasions. Customers can choose bolts with various head functions according to actual needs, such as outer hexagon bolts, C-hook bolts, O-shaped eye bolts, etc

NO.	Size mm	Hole diameter mm/inch.	Thread size mm/inch	Length of anchor bolt mm
1	M6	Ф10	M6	40
2	M8	Ф14	M8	50
3	M10	Ф16	M10	60
4	M12	Ф20	M12	80
5	M16	Ф24	M16	100
6	M20	Ф30	M20	130
7	1/4"	Ф10	1/4"	40
8	5/16"	Ф14	5/16"	50
9	3/8"	Ф16	3/8"	60
10	1/2"	Ф20	1/2"	80
11	5/8"	Ф24	5/8"	100
12	3/4"	Ф30	3/4"	130

Packing and delivery
