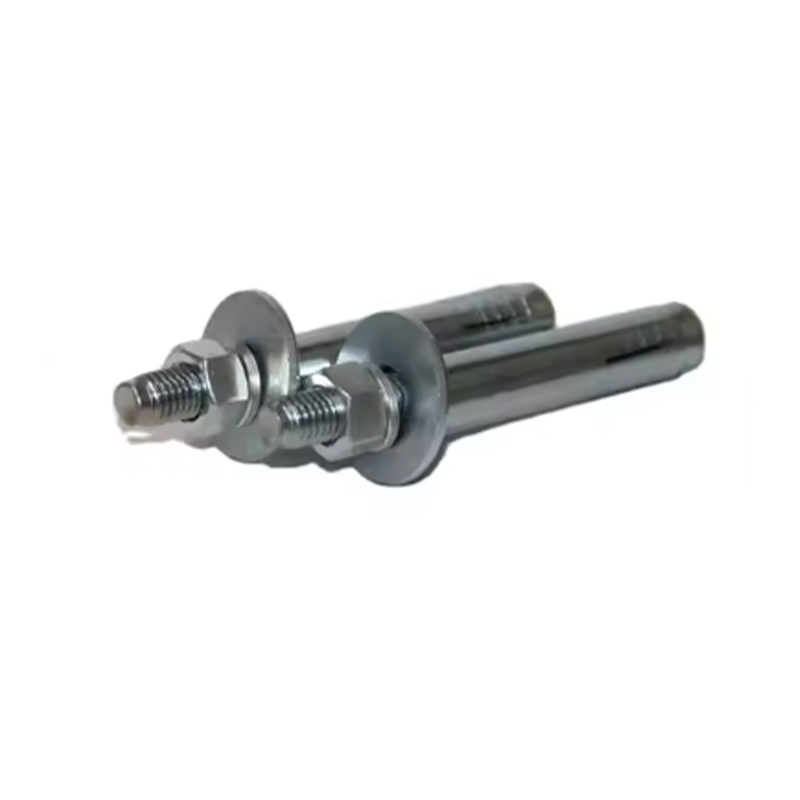

1. Characteristic: The wall thickness of the expansion tube is thicker than that of ordinary expansion bolts of the same specifications;The expansion tube is longer than that of ordinary expansion bolts of the same specifications;Several more knurled grooves are added to the expansion tube to increase the tensile strength;The size of the screw head is larger than that of the ordinary expansion bolt head;The matching washer is a large washer.
2. Requirements: The drill bit required for drilling should be 6 sizes larger than the product size.
3. Application:Elevator expansion anchors are a type of fastener specially used for elevator installation. They are usually made of high-quality steel and have strong seismic resistance and gripping power.

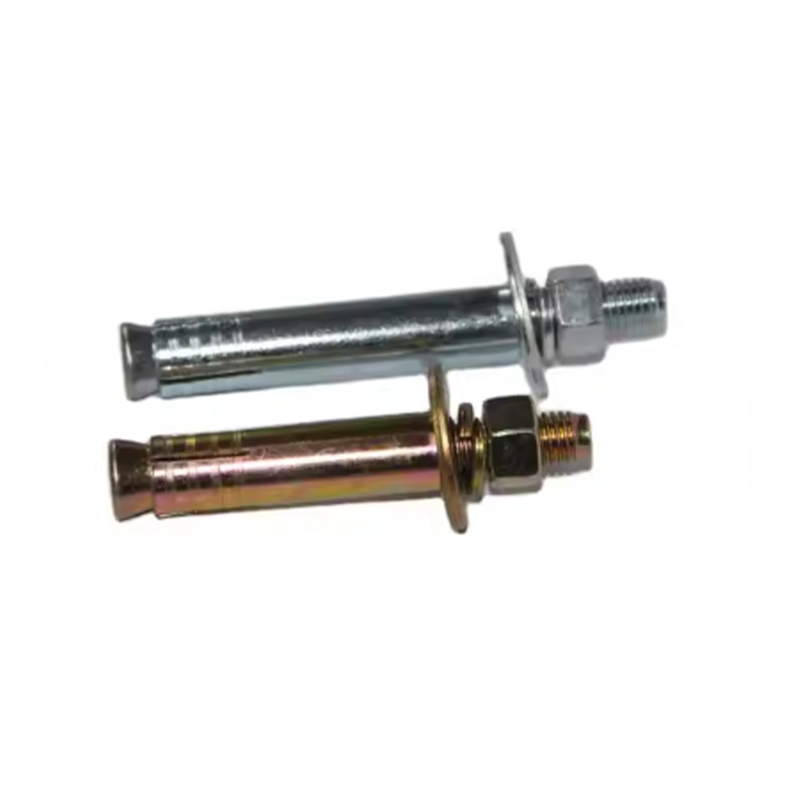

| Product Name | Elevator expansion Anchor |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blue and white zinc, Bleached |
| Colour | Yellow, Blue White, White |
| Standard Number | DIN,ASME,ASNI,ISO |
| Grade | 4.8 A2-70 |
| Diameter | M6 M8 M10 M12 M16 M20 |
| Thread form | Coarse thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. Characteristic: The wall thickness of the expansion tube is thicker than that of ordinary expansion bolts of the same specifications;The expansion tube is longer than that of ordinary expansion bolts of the same specifications;Several more knurled grooves are added to the expansion tube to increase the tensile strength;The size of the screw head is larger than that of the ordinary expansion bolt head;The matching washer is a large washer. 2. Requirements: The drill bit required for drilling should be 6 sizes larger than the product size. 3. Application:Elevator expansion anchors are a type of fastener specially used for elevator installation. They are usually made of high-quality steel and have strong seismic resistance and gripping power. |
|

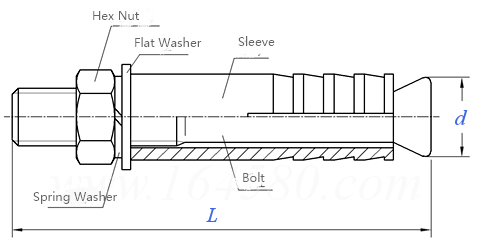

| Size | M6 x50 |
M8 X65 |
M8 X70 |
M10 X70 |
M10 X80 |
M10 X100 |
M12 X100 |
M12 X120 |
M12 X150 |
M16 X100 |
M16 X120 |
M16 X150 |
M16 X200 |
M20 X160 |
M20 X120 |
||
| Inch | 1/4 | 5/16 | 5/16 | 3/8 | 3/8 | 3/8 | 1/2 | 1/2 | 1/2 | 5/8 | 5/8 | 5/8 | 5/8 | 3/4 | 3/4 | ||
| Sleeve Diameter | 9.5 | 12 | 12 | 14 | 14 | 14 | 17.2 | 17.2 | 17.2 | 21.6 | 21.6 | 21.6 | 21.6 | 25.4 | 25.4 | ||
| Sleeve Length | 30 | 35 | 35 | 40 | 40 | 40 | 50 | 50 | 50 | 50 | 60 | 60 | 60 | 80 | 80 | ||
| Drill diameter | 9.5 | 12 | 12 | 14.5 | 14.5 | 14.5 | 18 | 18 | 18 | 22 | 22 | 22 | 22 | 26 | 26 | ||
| Tensile load | 890 | 1390 | 1390 | 1600 | 1600 | 1600 | 2540 | 2540 | 2540 | 3300 | 3300 | 3300 | 3300 | 4950 | 4950 | ||
